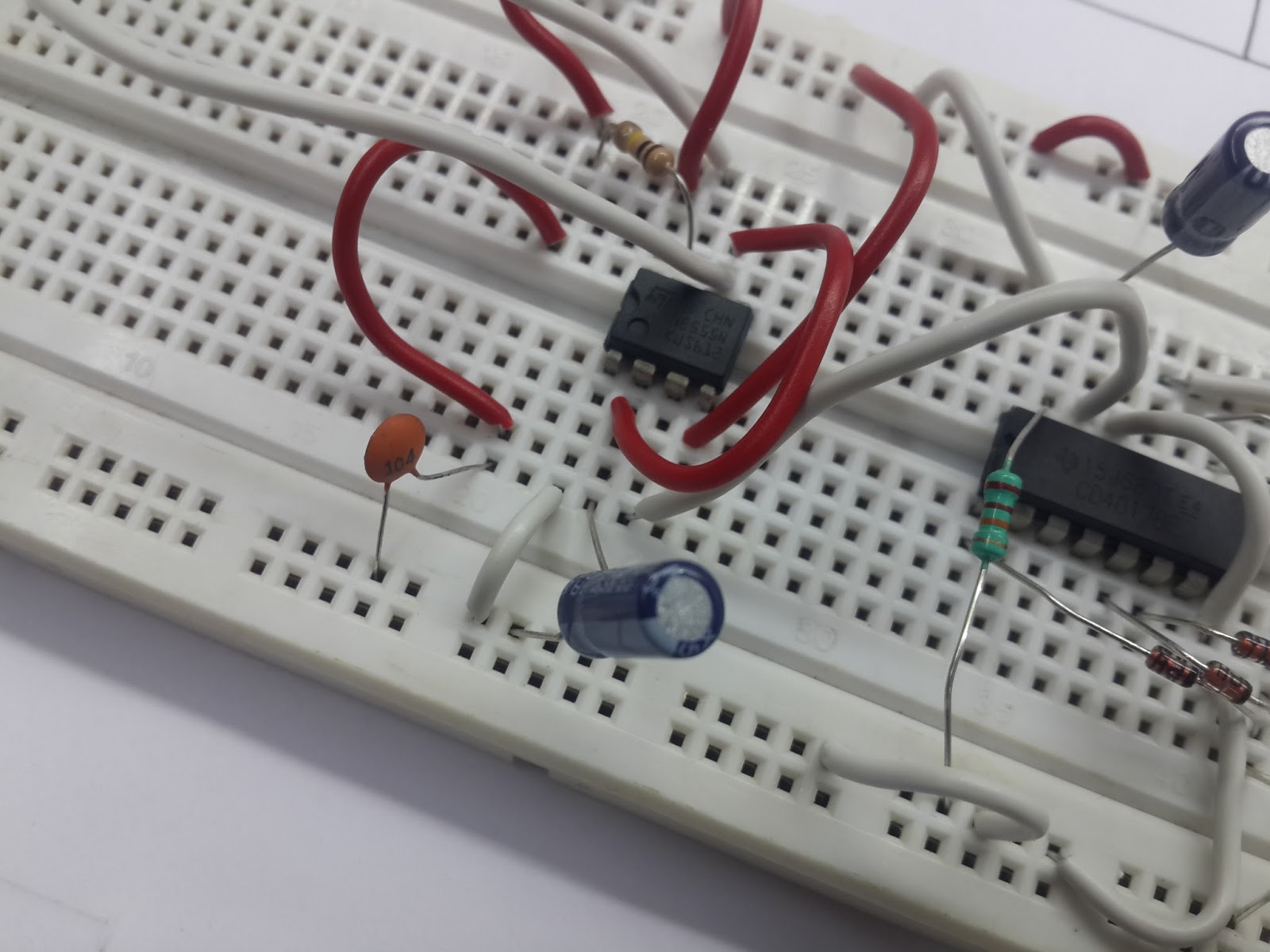

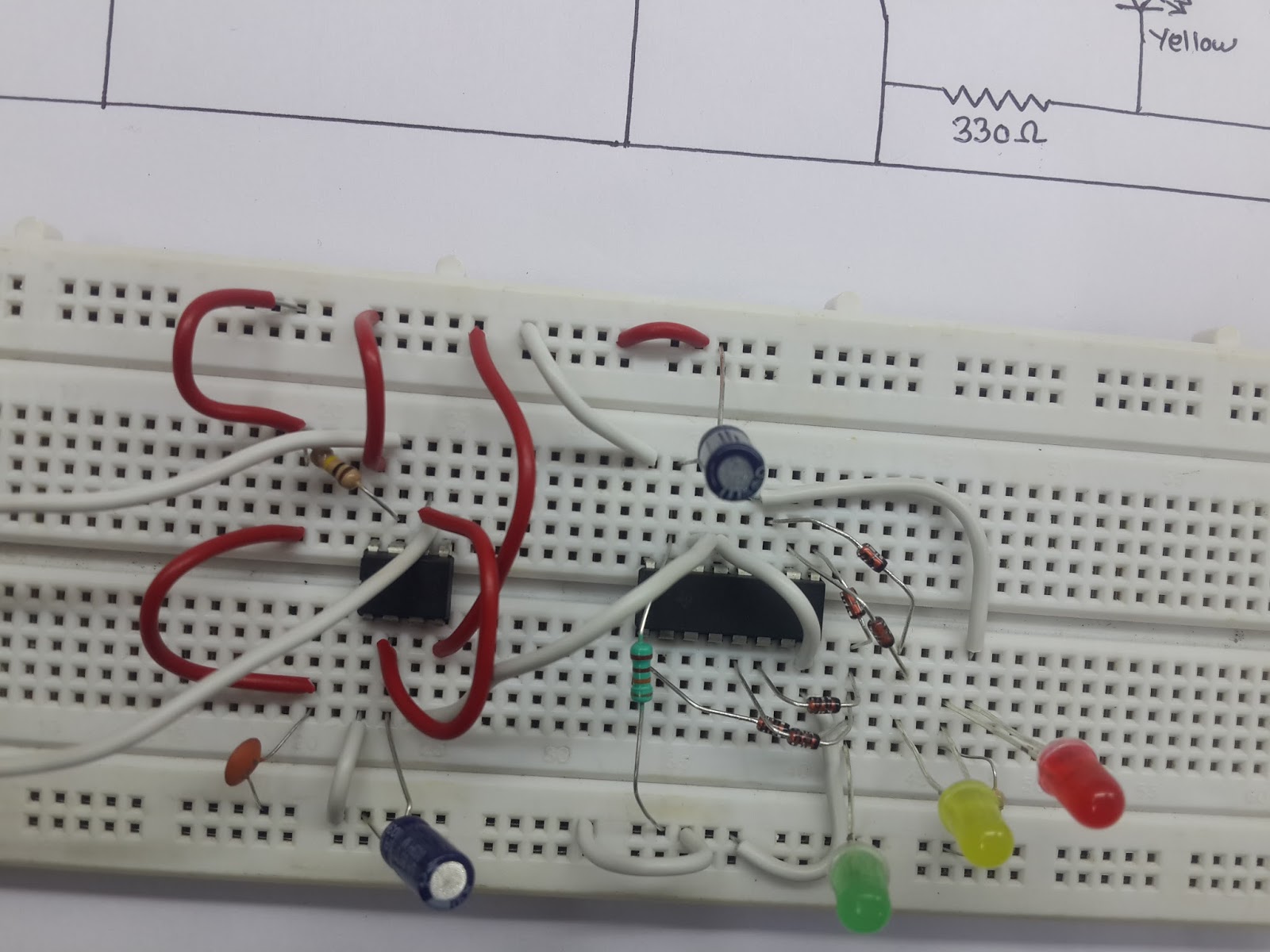

How To Make Traffic light signal (In Hindi)
↓Component Requirement↓
1. 555 Timer IC
2. 4017 Counter IC
3. Breadboard
4. Resistor 330Ω, 22kΩ, 100kΩ
5. 100KΩ Potentiometer
6. Capacitor 0.1μF, 10μF, 2.2μF
7. Diode 1N4148
x (6)
x (6)
8. Red, Yellow & green LEDs
9. Battery 9 Volt
10. Battery Clip
↓Circuit Diagram↓
☺Thanks
for watching☺
for watching☺
Bhai jo ek led hai
. Inka +ve end grnd karna hai kya?
helo
Bro,
Is this 4 bit traffic signal control system?
bhaiya help where to connect the potentiometer
Please can u show how u have completed the circuit
