Q. What data /parameters do we get from no load test and blocked rotor test on 3 phase I.M. and flow ?

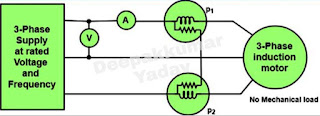

No load test :

We get from no load test

  1. No load current and its components
  2. Magnetising circuit constants
  3. Iron loss

Blocked rotor test on 3 phase Induction Motor:

Blocked rotor test we get

  1. Copper loss
  2. Z01,  R01  and  X01
  3. We can plot equivalent circuit and circle diagram to find complete performance of motor.
